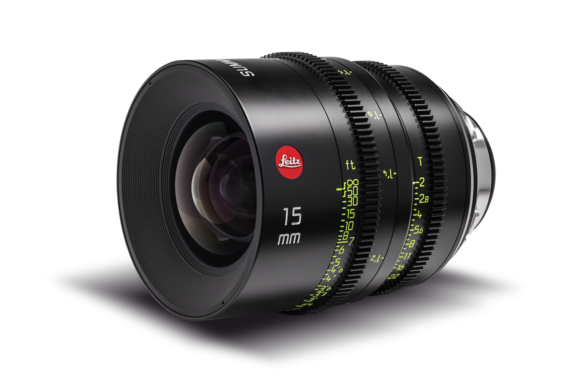

SUMMICRON-C

Character

Premium prime lenses designed for larger sensors on film and television productions.

“In testing the ARRI Alexa LF camera for RAISING DION I saw that the large image circle of the Leitz SUMMICRON-C lenses actually covered the LF sensor in 2:1 and fell in love with the falloff in the corners. They were sharper and cleaner in the center without being harsh on skin tones, and then in a very natural way fell off on a sensor that those lenses were never designed to cover.”

Armando Salas, ASC

Cinematic by Design

Coming to market right before cinema’s exploration of full frame digital sensors began, the Leitz SUMMICRON-C lenses are the last of the modern spherical lenses designed for the Super 35 format, and as such hold many advantages over older lenses intended for the same format. The biggest advantage being that their “Super 35+” image circle, which makes them not just usable on larger sensors at certain formats, but the characteristics and artifacts outside the expected performance range make the images truly unique and interesting.



Comprising 11 focal lengths from 15 mm to 135 mm, the SUMMICRON-C series was designed with the cinematographer in mind. They offer authentic color rendition, natural focus transitions and fall off, and a creamy sharpness that captures everything from actresses to architecture with a humane and true representation. Skin tones remain soft and smooth while hard edges and fine details retain their contrast, making these one of the most versatile and requested sets of cine lenses available.

TOW Leitz 1.1.33

Small but Mighty

Advances in cine lens design allowed the SUMMICRON-C lenses to be smaller and more compact than other lenses with comparable performance. With all but the extreme focal lengths only 4” (101 mm) long and weighing between 2.9 and 3.4 pounds (1.3-1.6 kg), these lenses are perfect for small-build handheld shooting, Steadicam, stabilized rigs, aerial cinematography, and underwater work. Matched focus and iris ring locations as well as uniform 95mm front diameters mean lens changes and rig rebalancing are quick and easy.



After many years of success the production of the SUMMICRON-C lenses is ending and new lens sets will no longer be available for purchase. Leitz will continue to support the existing SUMMICRON-C owners and rental market with parts and service. While the lenses are no longer being produced, we expect them to continue working on countless features, series and commercials for many, many years through our worldwide network of owners and rental companies.

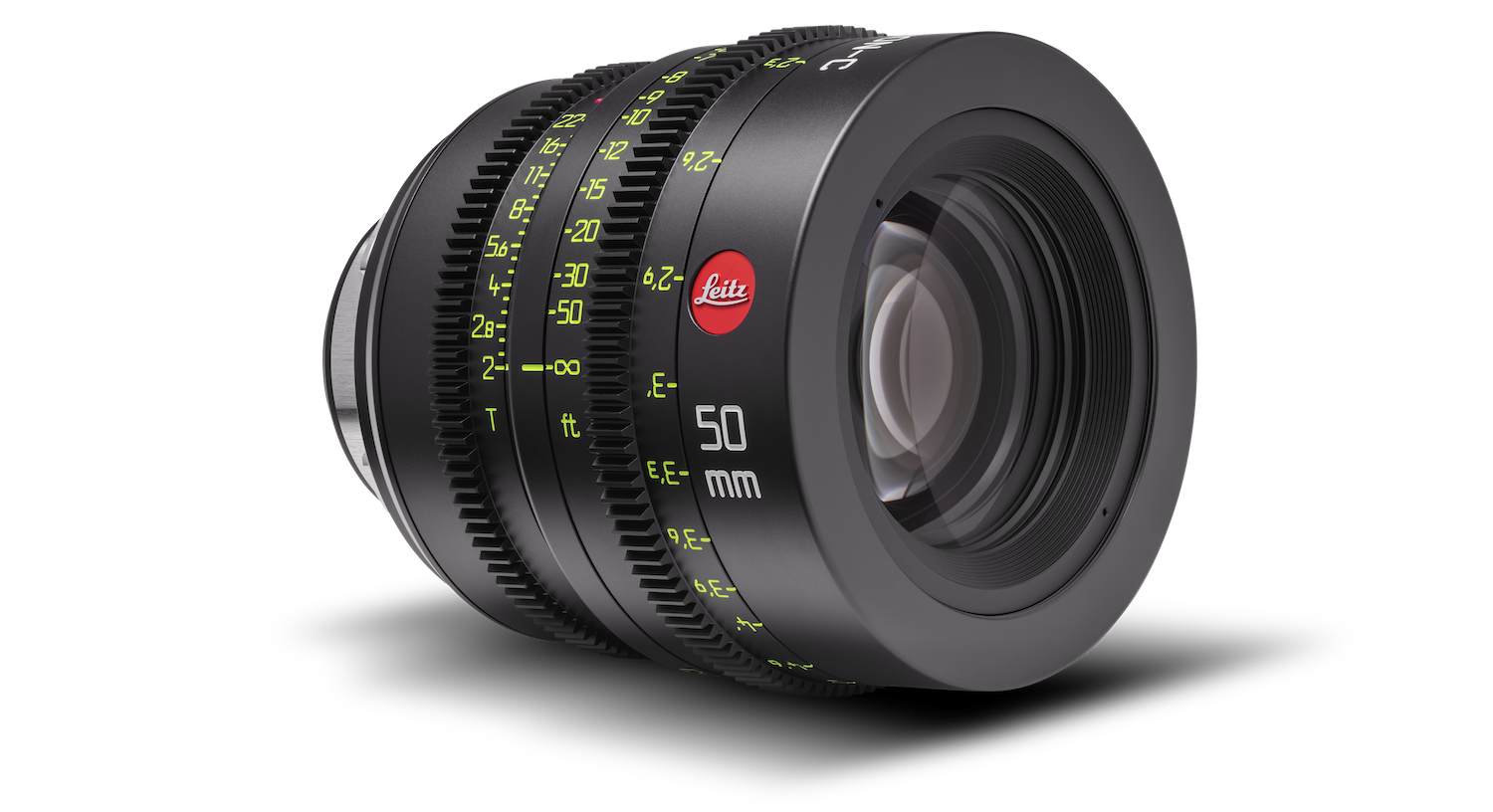

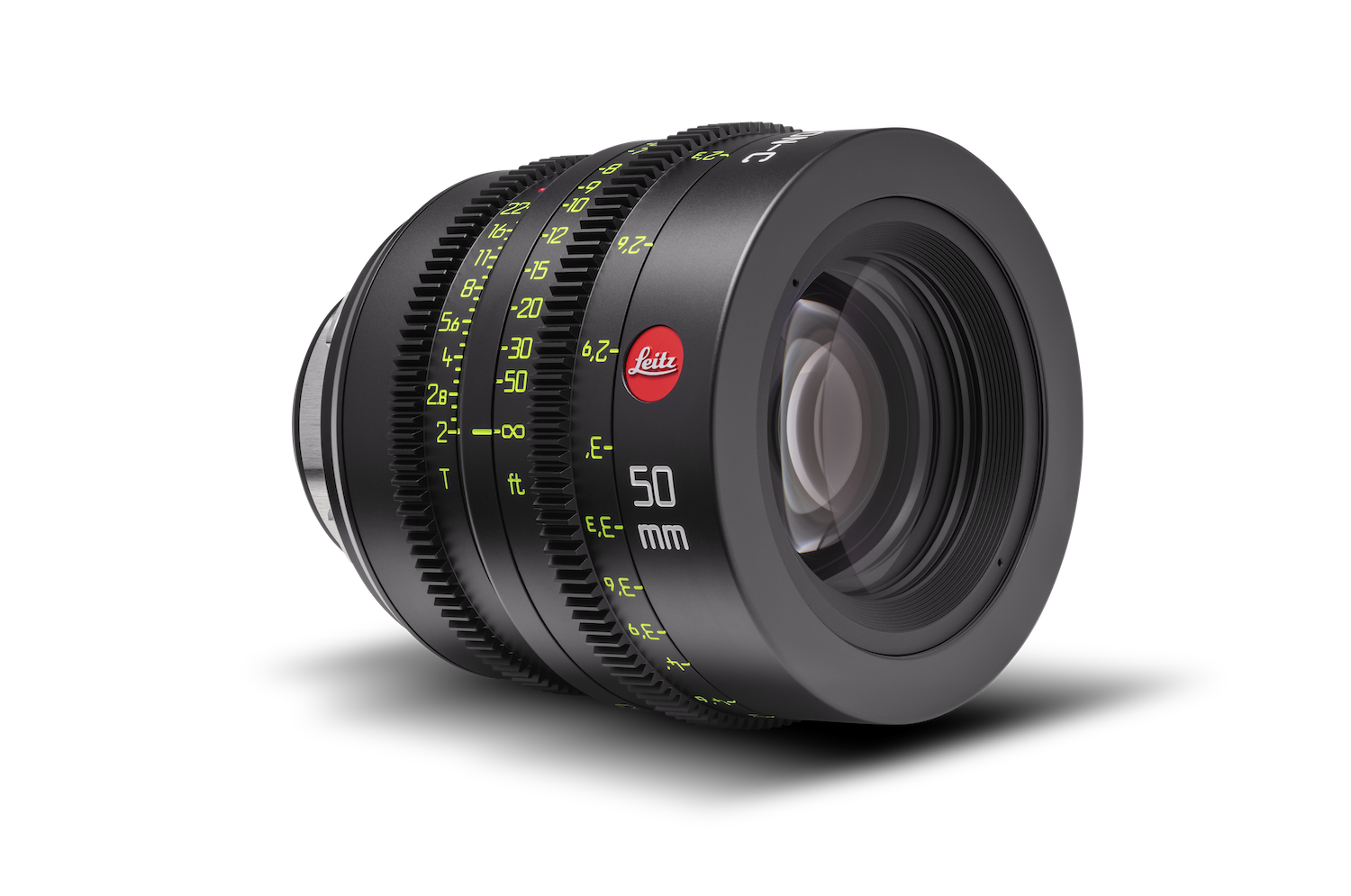

Leitz Summicron C 50mm 2

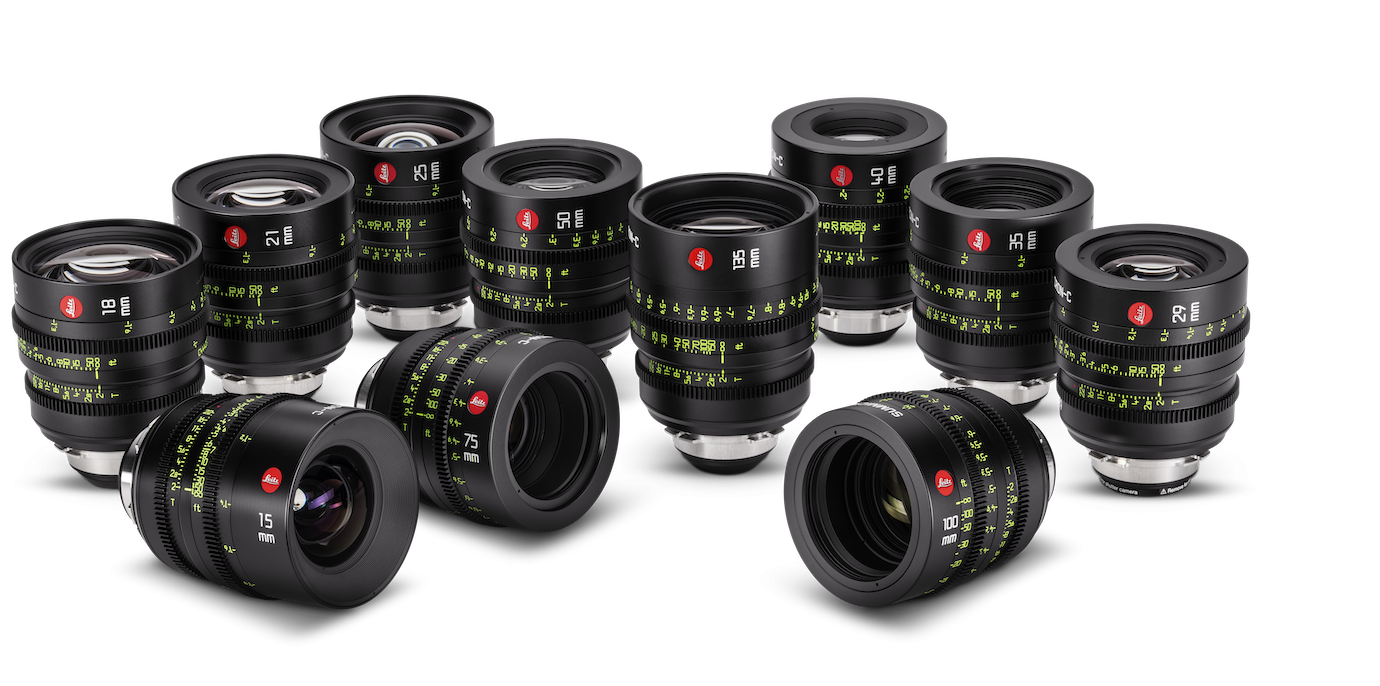

Leitz Summicron Group 1

The Set

The SUMMICRON-C cine lenses are comprised of 11 focal lengths from 15 mm to 135 mm.

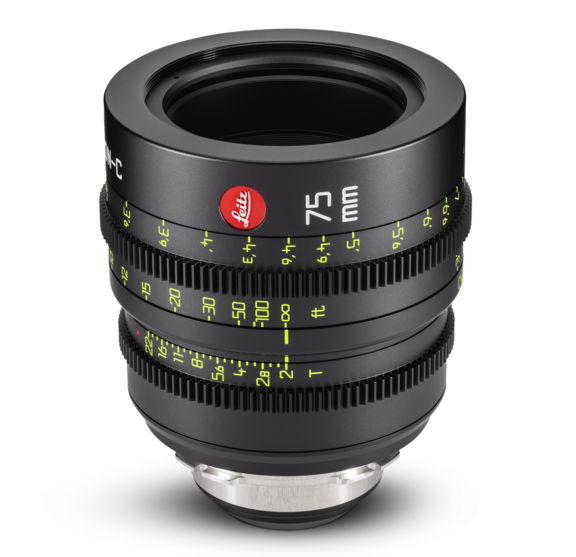

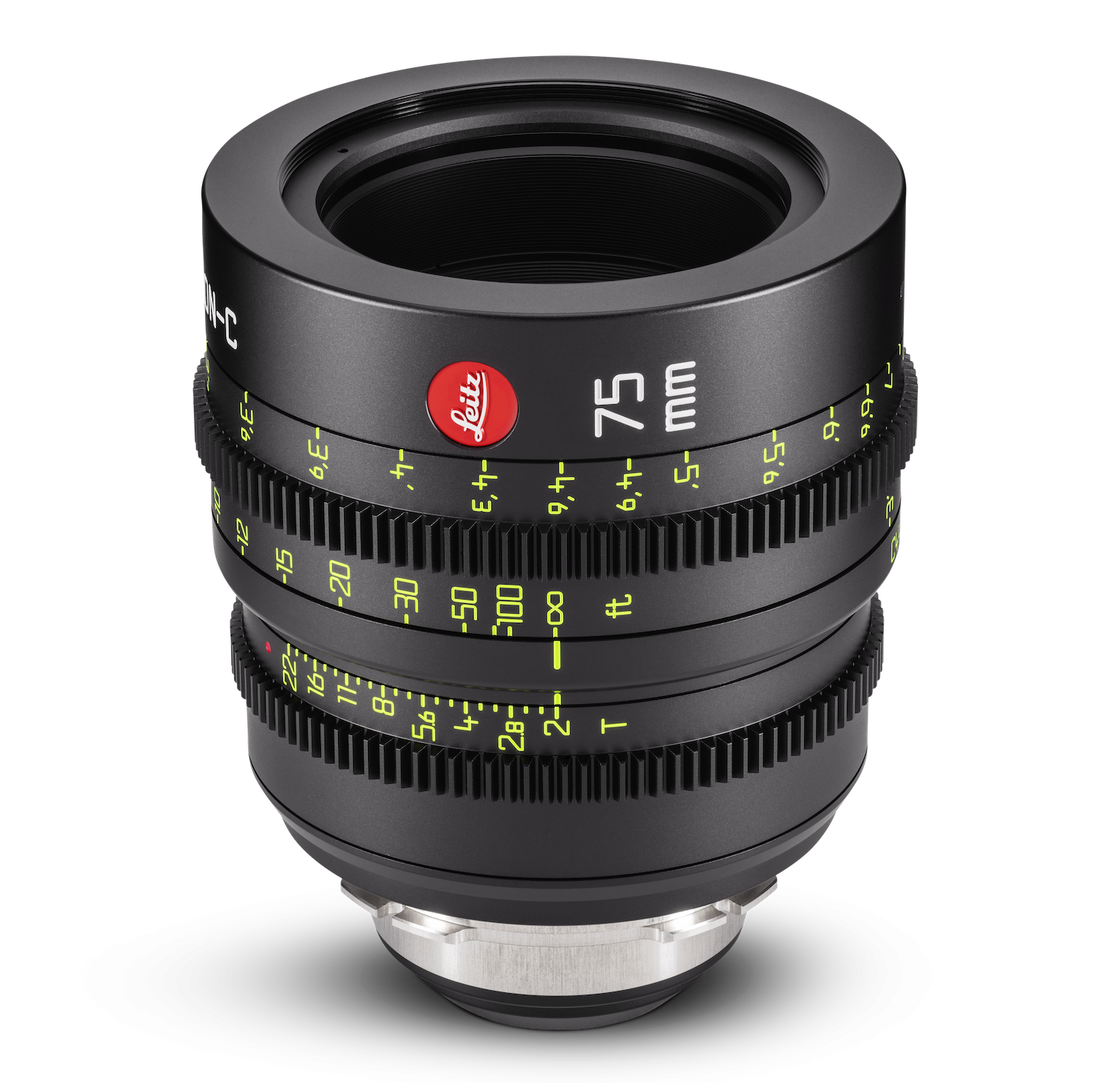

Leitz Summicron C 75mm 1

Aperture

The T2.0 SUMMICRON-C prime lenses are built with high ASA/ISO digital cameras in mind, offering plenty of depth of field and performance while maintaining a compact size.

Leitz Summicron C 50mm 2

Focusing

The biggest complaint about 35 mm cinema lenses has always been their large size intended to accommodate a focus ring with more witness marks.

The SUMMILUX-C lenses feature a patented focusing mechanism that eschews the logarithmic focusing of the past by expanding the focus scale in the most critical range.

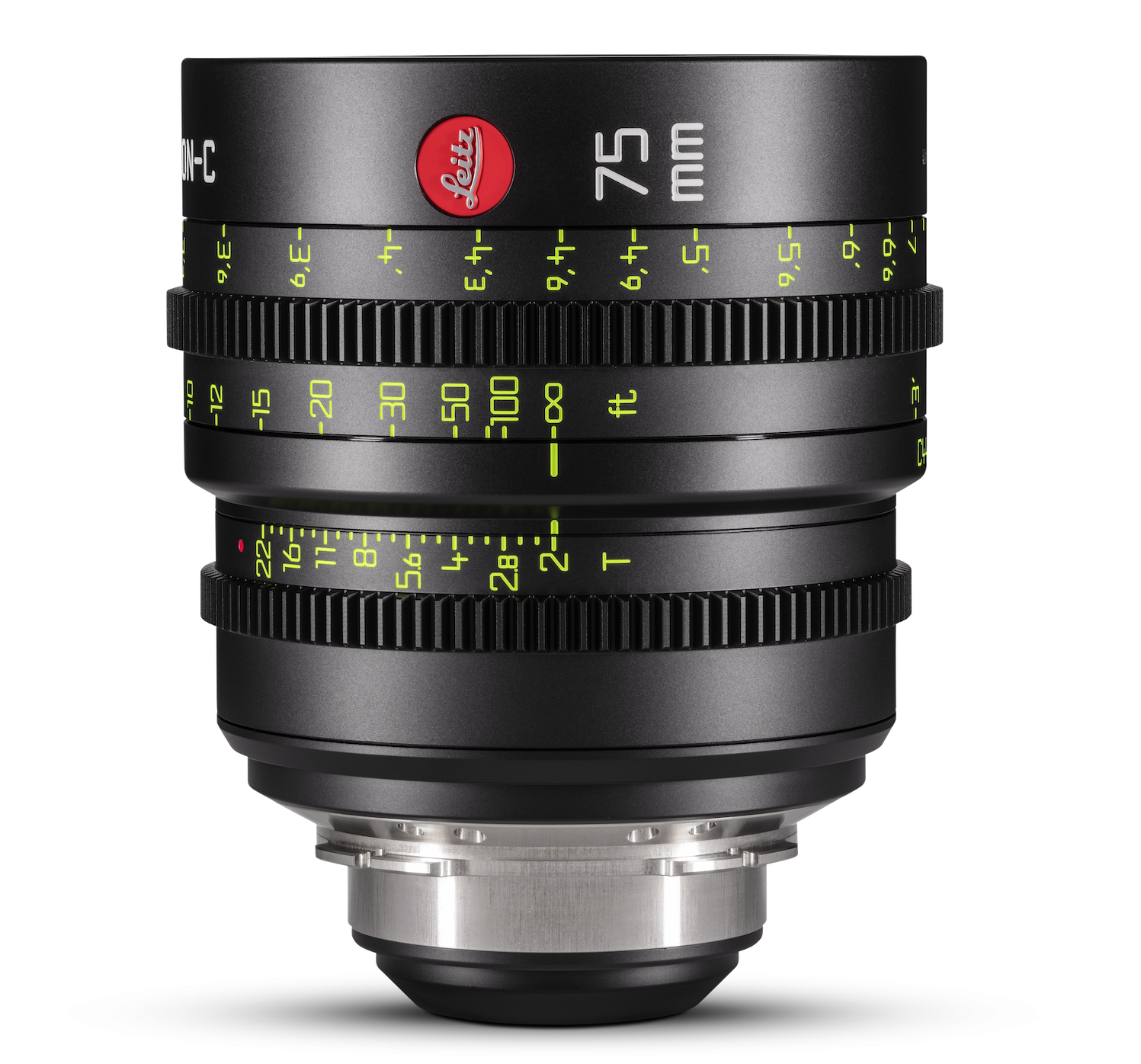

Leitz Summicron C 75mm

Compact, Lightweight and Matched

Advances in cine lens design allow the SUMMICRON-C lenses to be smaller and more compact than other lenses with comparable performance. Only 4” (101 mm) long and weighing between 2.9 and 3.4 pounds (1.3-1.6 kg), these lenses are perfect for stabilized rigs, aerial cinematography, underwater cinematography, and stereoscopic 3D.

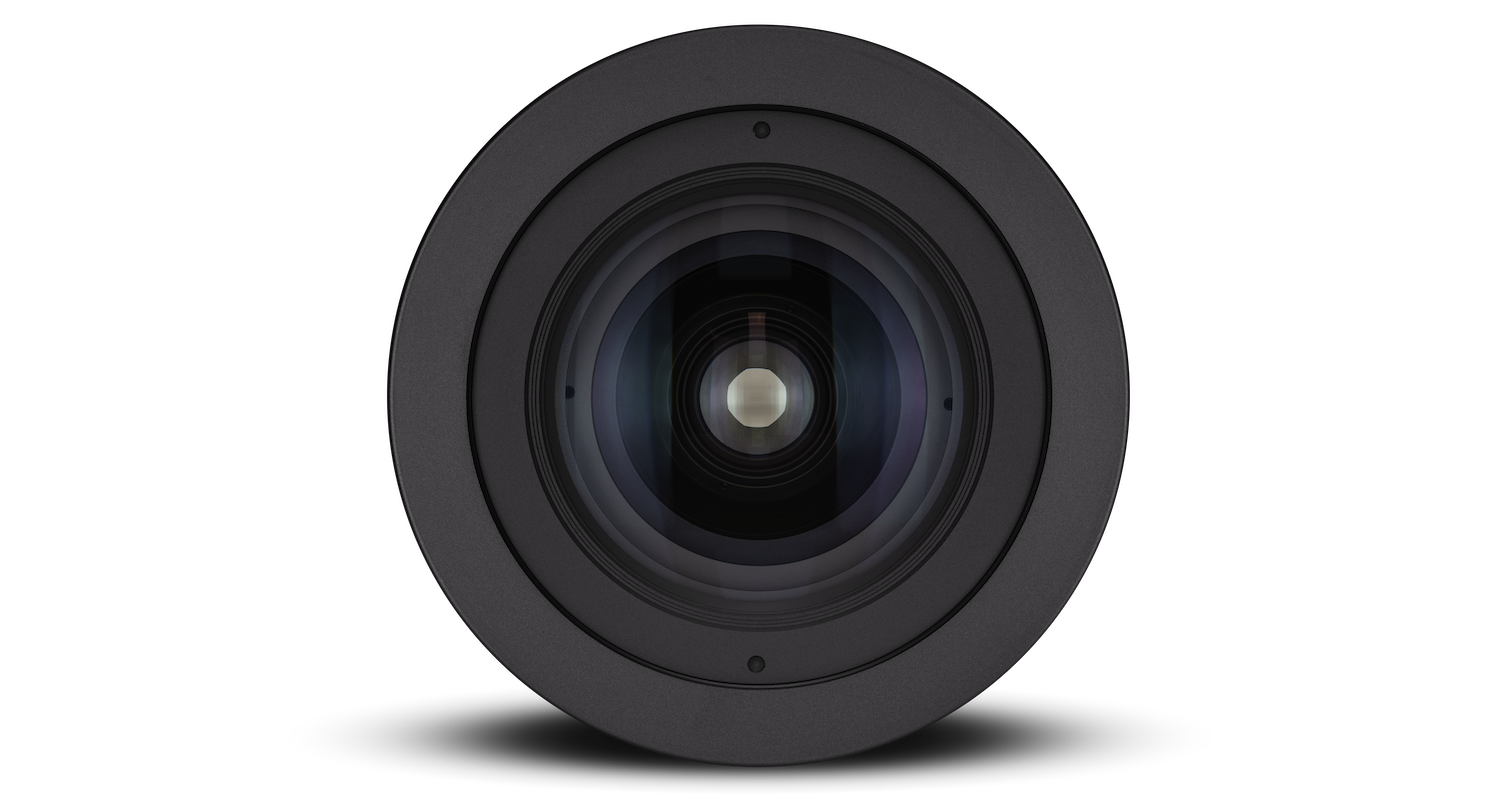

Leitz Summicron C 29mm open

Enlarged "Super 35"

Digital camera sensors are getting physically larger and the SUMMICRON-C lenses are ready to perform. Each lens offers an image circle wider than 35mm in diameter, big enough to easily cover sensors from RED Helium 8K S35 and GEMINI 5K S35, Sony and ARRI Alexa f 16:9 mode formats without performance loss in the corners or vignetting.

Shot with SUMMICRON-C

Check out these films that were all shot on our SUMMICRON-C, large-format cine lenses.

The Old World | A Mindtrip Through Europe OFFICIAL TRAILER 4K

Sizzle Reel

"I'm Leitz Cine all the way..." Jason Momoa

The all-new BMW S 1000 R

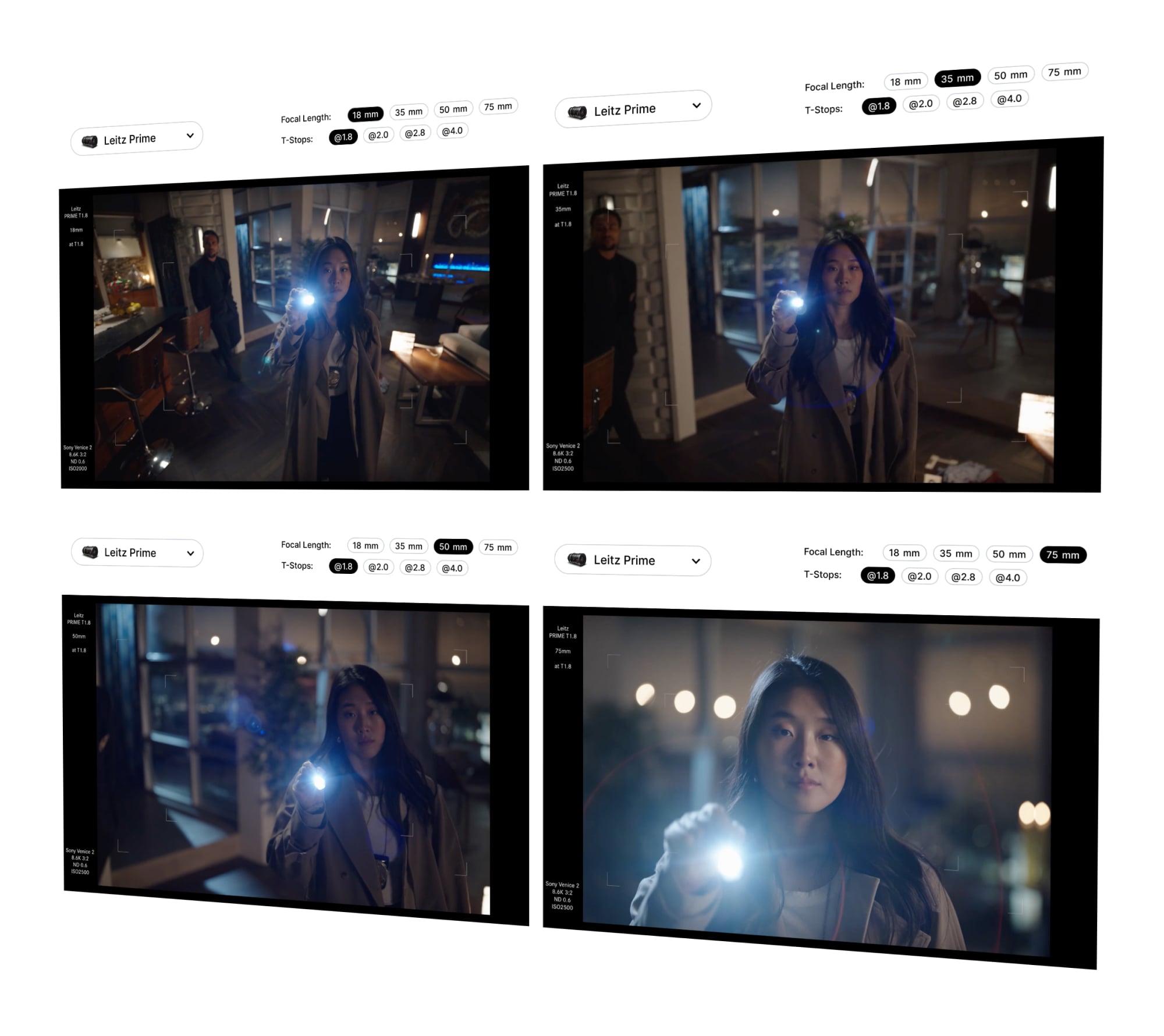

Compare Leitz Lenses

Unlock the perfect vision with our lens comparison tool. Explore various focal lengths effortlessly and find the ideal gear for your next cinematic masterpiece

compare lenses call out

Technical Specifications

Focal Length (mm)

15 mm

18 mm

21 mm

25 mm

29 mm

35 mm

40 mm

50 mm

75 mm

100 mm

135 mm

Aperture

T2.0 - T22 - full close

Image Circle

36 mm

Close Focus (ft)

1'

1'

1'

1'

1'

1’2”

1’6”

2’

2’7”

3’3”

4'6"

Close Focus (m)

0.3

0.3

0.3

0.3

0.3

0.36

0.45

0.6

0.8

1.0

1.35

Horizontal Angle of view "Super 35" 24.9 mm x 18.7 mm

79.4º

69.3º

61.3º

52.9º

46.5º

39.2º

34.6º

28º

18.9º

14.2º

10.5º

Weight (lb)

4.1

2.9

2.9

3.4

3.0

2.9

3.0

3.2

2.7

2.7

4.1

Weight (kg)

1.8

1.3

1.3

1.5

1.3

1.3

1.3

1.5

1.2

1.2

1.8

Length (ft)

4.6"

4"

4"

4"

4"

4"

4"

4"

4"

4"

4.6"

Length (in/mm)

4.6"/118

4.0"/101

4.0"/101

4.0"/101

4.0"/101

4.0"/101

4.0"/101

4.0"/101

4.0"/101

4.0"/101

4.6"/118

Lens Mount

PL - Stainless Steel

Focus Rotation

300°

Iris Rotation

180°

Front Diameter

95 mm / 3.7”

Color Balance Between Lenses

Matched Color

Front Filter

No

Rear Filter or net Holder

No

Matched Focus/Iris Ring Locations

All focal lengths

Matched Dimension in Set

All focal lenghts (except 15 mm and 135 mm)

Compatibility with RED RF TO PL ADAPTER W/ ELECTRONIC ND FILTER PACK

Yes

No

No

Yes

Yes

Yes

Yes

Yes

Yes

No

No
