MACROLUX 95

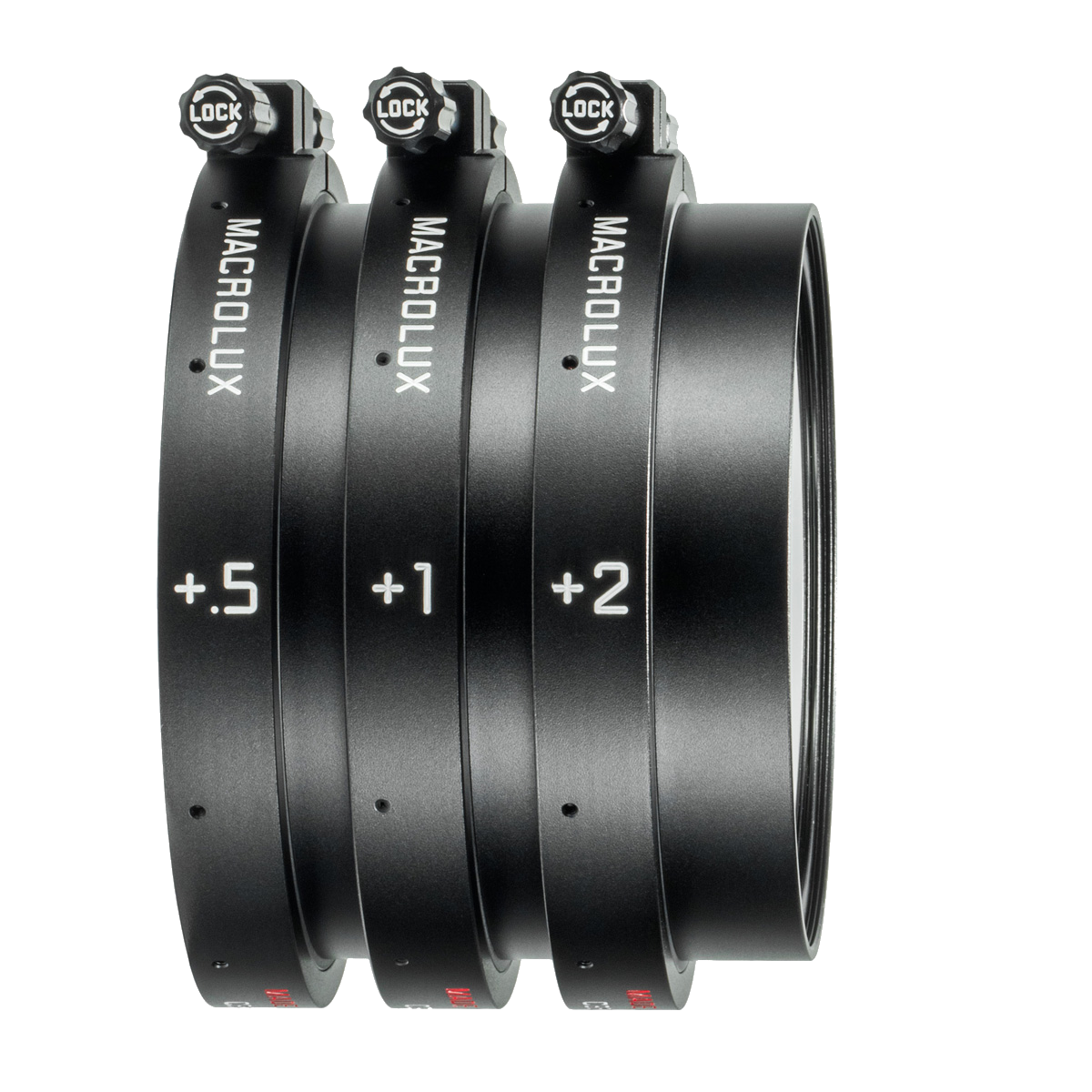

Leitz MacroLux All right side

THE DIOPTER - REINVENTED

Incredibly detailed.

The diopter, a secret weapon of classic cinematography for decreasing the minimum focus distance of lenses, has been reinvented for single sensor digital cameras.



This MACROLUX close-up lens, available in strength +2, +1 and +0.5 , is screwed directly onto the lens body and can be either used as a single element or also can be easily adjusted to extend the effect by adding one additional diopter strength element or, to minor visual impurities to a maximum, by stacking all three single elements together, without adding any chromatic aberration to the lens.



Each single element shares the same mechanical housing, all three are equally compatible with prime, zoom and anamorphic lenses with Ø 95 mm front diameters to enhance the performance by extending effects without adding any chromatic aberration to the lens.



The modern lens design of the MACROLUX 95 creates a high-performance optic with no perceptible light loss, spherical aberrations, color fringing or centering issues. The custom coatings offer it a high resolution and contrast along with a color temperature matched to the natural, neutral look of the SUMMILUX-C and SUMMICRON-C lenses, although it also pairs well with other lenses, including anamorphic.



The high-quality glass used in the MACROLUX allows it to be used on wide-angle lenses without inducing distortion or image degradation. This offers increased close focus ability while also increasing the out of focus effect and background separation. It can be used for extreme close ups as well as maintaining a consistent depth of field look between wider and longer lenses.

Using the MACROLUX with telephoto lenses offers the option for creating and inserting macro shots that maintain the consistent look and feel of the rest of the content. The +1 allows 33 % closer focus with a SUMMILUX-C 100 mm lens and a 50 % closer focus with a SUMMILUX-135 mm.

Capture incredible detail with no loss of performance and additional color fringing, increases out of focus features and background separation when using wider lenses and higher T-stops.



Tillmann Brothers Leitz Macrolux 1.4.1

Macro Work

Decrease the minimum focal distance on longer lenses for a greater range of close up and macro work by magnifying the image relative to the sensor. The longer the focal length, the greater the MACROLUX effect.

Out of Focus Elements

Accentuate the natural bokeh of the lens and further soften and blend out of focus elements creating more of a cinematic look and feel.

Lafleur Julian

Background Separation

Create more separation between the subject and the background on wider lenses by throwing the background further out of focus in a smooth and natural way. This is great for when you have to shoot at a slower stop or in a space where the background may seem too close to the subject such as interviews or other field work.

Carmelo Greco Julian

Narrow Field of View

Narrow the field of view and push the camera nearer to the subject in naturally tight spaces or when lights and support gear have to be close to the subject as well.

Stackable

Increase the effect by stacking multiple CINE MACROLUX diopters together and still use standard matte boxes.

Technical Specification

Available Power

+2, +1, +0.5

Lens Compatibility

All existing Lenses with a 95 mm front diameter

Stackable

Yes

Internal Diameter

95 mm

External Diameter (front)

95 mm

External Diameter (max)

107.5 mm

Width

30.5 mm

Weight (lb / kg)

+0.5: 480 / 1.1; +1: 450 / 1; +2: 470 / 1.05

Dual-sided Screw

Yes

Mattebox Compatibility

Regular or Clamp-on

Usable Aperture Range

Full Aperture Range

Color

Natural Color Balance

Color Balance Between Lenses

Matched to Leitz Cine Lenses

Resolution

High Resolution

Contrast

High Contrast

Resources

MACROLUX 95

Data Sheet English Download

MACROLUX 95

Data Sheet Spanish Download

MACROLUX 95

Data Sheet French Download

MACROLUX 95

Lens Compatibility Download
