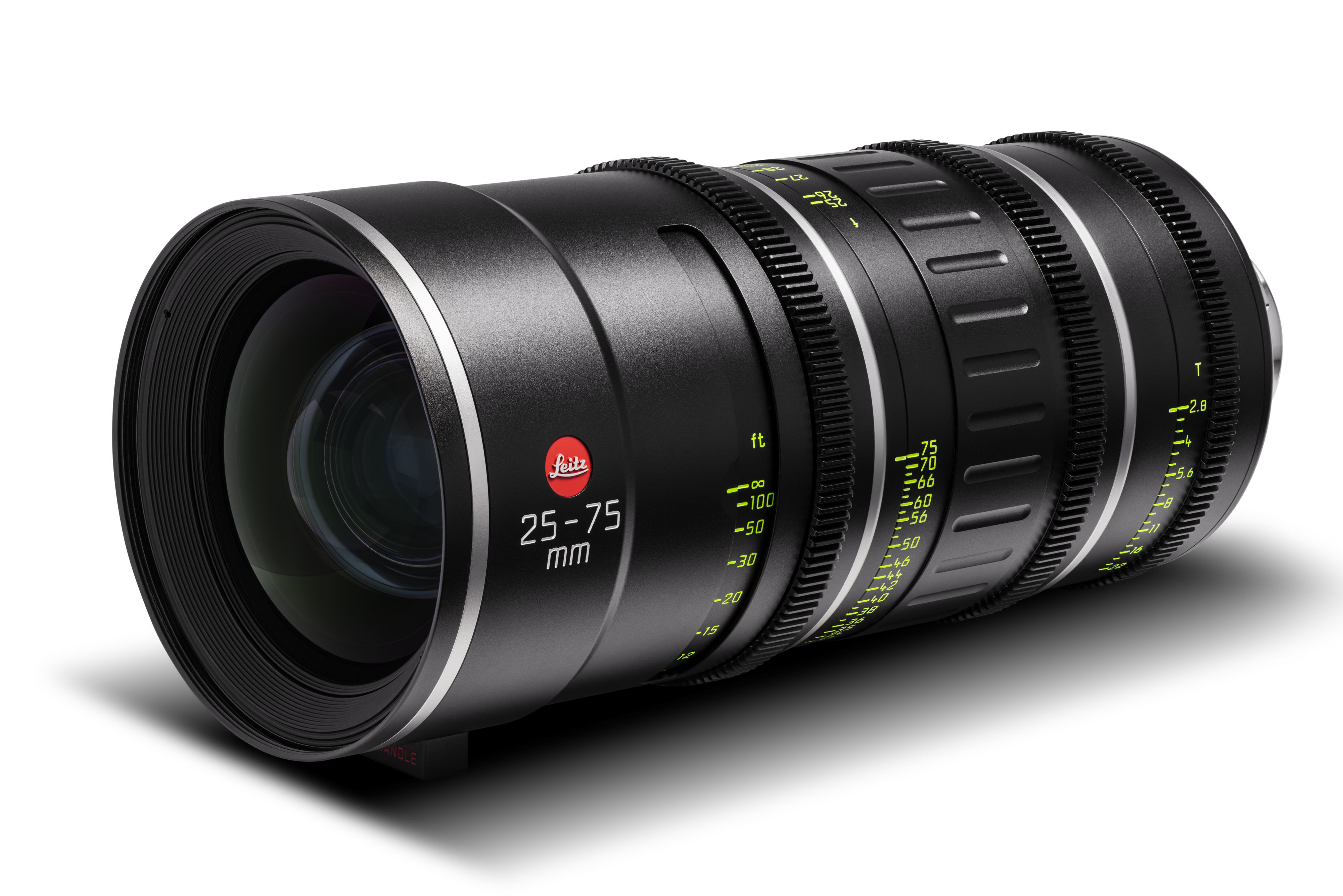

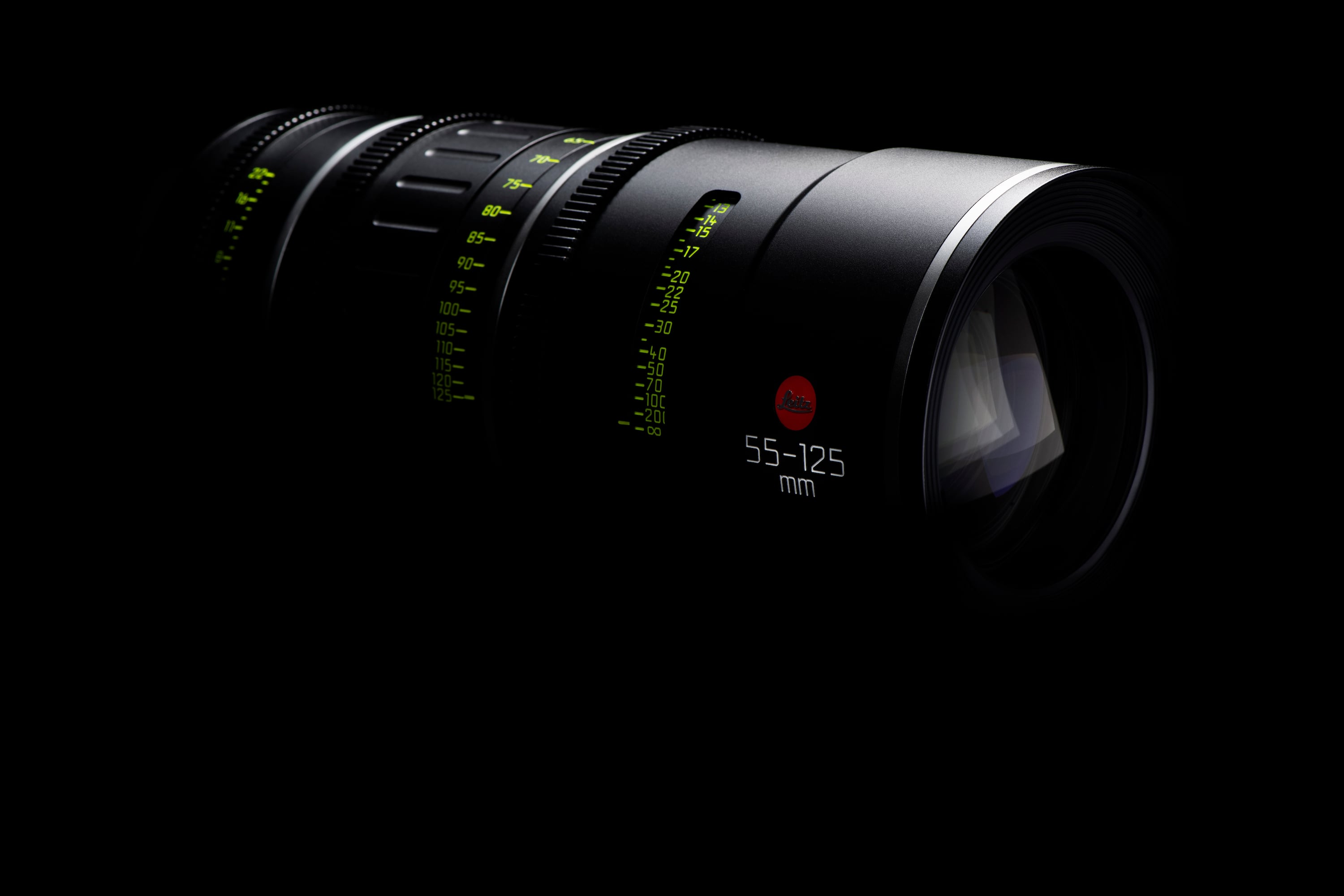

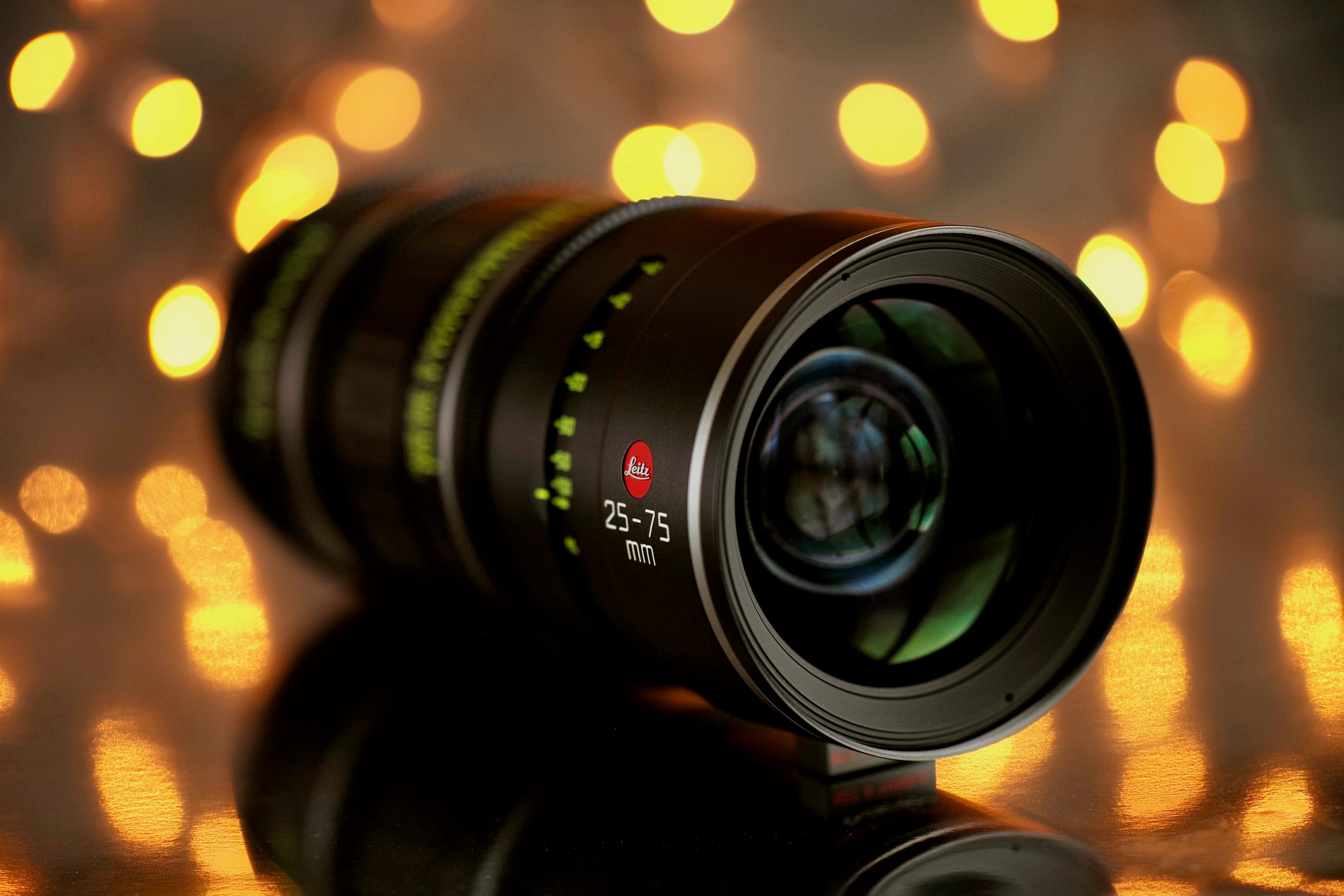

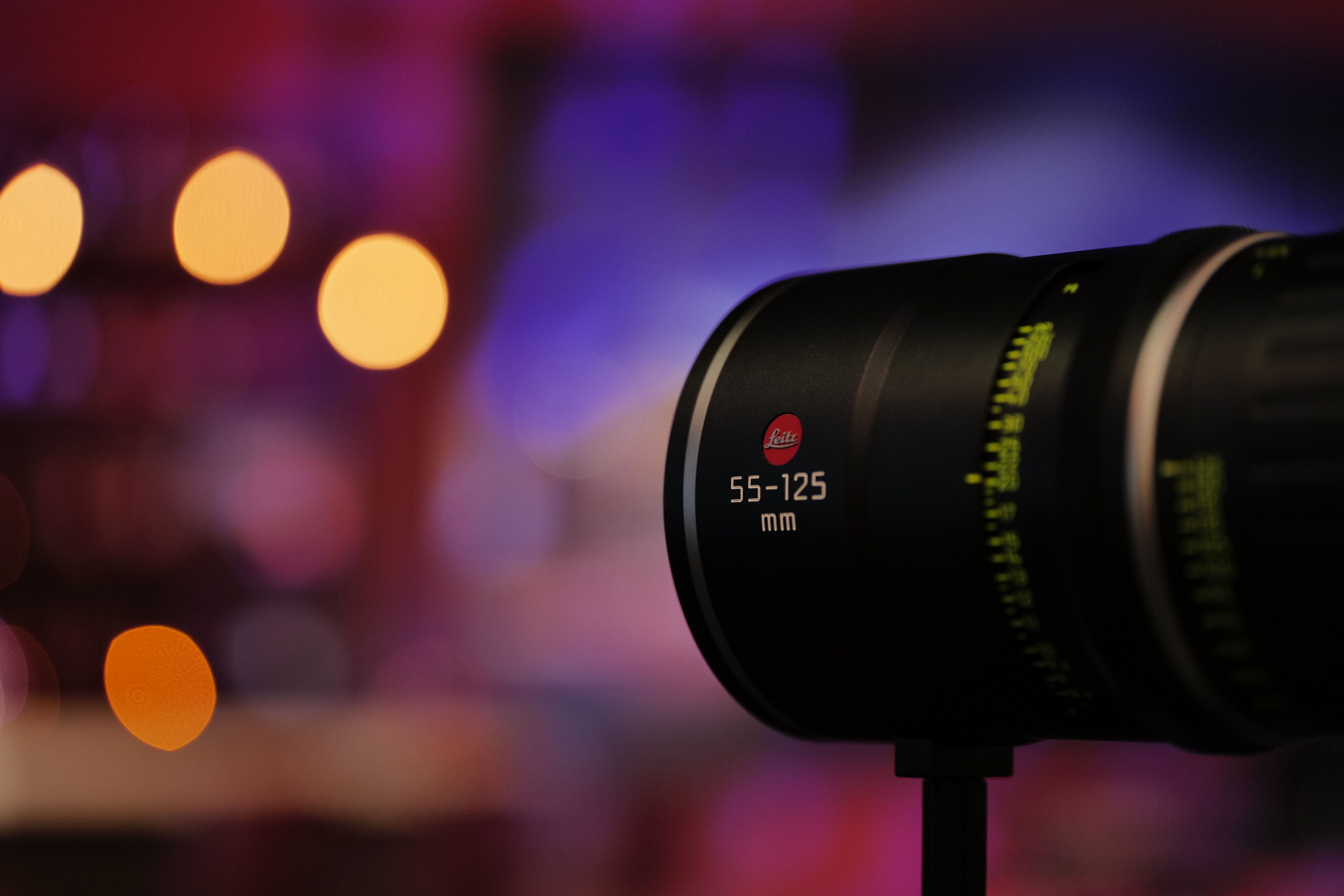

The LEITZ ZOOMset composed of a 25 – 75 mm and a 55 - 125 mm prime zoom cine lens.
Key Features LEITZ ZOOM
• Color Matched with LEITZ PRIME
• No light loss (no ramping) over entire zoom range
• Parfocal
• Breathing is minimal
• Distortion is exceptionally low
• Chromatic Aberration is not visible
Focal Length (mm) | 25-75 mm | 25-75 mm | 55-125 mm | 55-125 mm |
|---|---|---|---|---|
Focal Length Ratio | 3 | 3 | 2.3 | 2.3 |
Aperture | T2.8 | |||
Image Circle | 46.5 mm | |||
Close Focus (ft) | 3’ | 3’ | 3’5” | 3’5” |
Close Focus (m) | 0.91 | 0.91 | 1.05 | 1.05 |
Horizontal angle of view “Full Frame” 36 x 24 mm | at 25 mm | 71.5° | at 55 mm | 36.2° |
Horizontal angle of view “Full Frame” 36 x 24 mm | at 50 mm | 39.6° | at 90 mm | 22.6° |
Horizontal angle of view “Full Frame” 36 x 24 mm | at 75 mm | 27° | at 125 mm | 16.4° |
Horizontal angle of view “Super 35” 24.9 x 18.7 mm | at 25 mm | 52.9° | at 55 mm | 25.5° |
Horizontal angle of view “Super 35” 24.9 x 18.7 mm | at 50 mm | 28° | at 90 mm | 15.7° |
Horizontal angle of view “Super 35” 24.9 x 18.7 mm | at 75 | 18.8° | at 125 mm | 11.4° |
Weight (lb) | 8.2 | 8.2 | 9.7 | 9.7 |
Weight (kg) | 3.7 | 3.7 | 4.4 | 4.4 |
Length (in) | 10.5" | 10.5" | 11.02" | 11.02" |
Length (mm) | 266.6 mm | 266.6 mm | 279.9 mm | 279.9 mm |
Entrance Pupil (mm) | at 25 mm | 268.7 | at 55 mm | 238.1 |
Entrance Pupil (mm) | at 50 mm | 266 | at 90 mm | 199.8 |
Entrance Pupil (mm) | at 75 mm | 258.7 | at 125 mm | 179.6 |
Zoom Rotation | 112.65° | 112.65° | 120° | 120° |
Iris Blades | 15 | 15 | 21 | 21 |
Lens Mount | PL, LPL with Cooke/i | |||
Front Diameter | 114 mm | |||
Front Filter | M 112 x 1.5 mm screw-in | |||
Rear Filter | Via net holder. With LPL Adapter for both, with PL Adapter only with 55-125 mm | |||
Matched Focus/Iris Ring Locations | Both | |||
Focus Rotation | 270° | |||
Iris Rotation | 54° | |||
Focus Scales | Turnable scale, easy change from imperial to metric | |||
Iris Shape | Circular through all stops | |||
Color Matching | Matched with LEITZ PRIME lenses | |||
